STMAV340

Wide-Bandwidth Video Switch

STMAV340 Features

* Bi-directional operation

* 4 input/output channels analog video switch

* Wide bandwidth 300MHz

* Low 4Ω switch resistance between two ports

* Excellent RON matching between channels

* Minimal propagation delay through the switch

* Low quiescent current consumption

STMAV340 General Description

The STMAV340 is a bidirectional quad (4 channel), high speed single pole/double throw (SPDT), low power CMOS TTL-compatible analog video switch designed for advanced video applications which demand superior image quality. The low ON Resistance (RON) of the switch allows inputs to be connected to out.

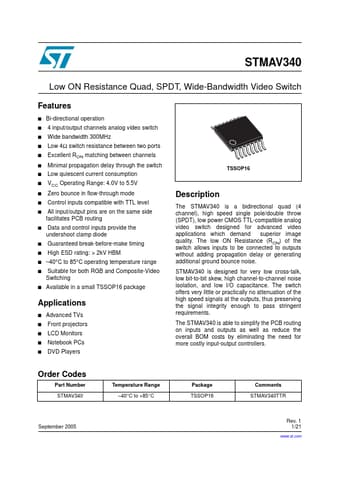

STMAV340 Datasheet (0.98 MB)

Preview of STMAV340 PDF

Datasheet Details

Part number:

STMAV340

Manufacturer:

STMicroelectronics ↗

File Size:

0.98 MB

Description:

Wide-bandwidth video switch.
