STN817A - PNP MEDIUM POWER TRANSISTOR

STN817A Description

www.DataSheet4U.com STN817A STF817A PNP MEDIUM POWER TRANSISTOR General .
The STF817A - STN817A are PNP transistor manufactured using Planar Technology resulting in rugged high performance devices.

STN817A Features

* SURFACE-MOUNTING DEVICES IN MEDIUM POWER SOT-223 AND SOT-89 PACKAGES AVAILABLE IN TAPE & REEL PACKING 2

STN817A Applications

* VOLTAGE REGULATION RELAY DRIVER GENERIC SWITCH Internal schematic diagram Order codes Sales Type STF817A STN817A Marking 817A N817A Package SOT-89 SOT-223 Packaging TAPE & REEL TAPE & REEL November 2005 Rev 1 1/9 www. st. com 9 1 Electrical ratings STF817A - STN817A 1 Table 1

📥 Download Datasheet

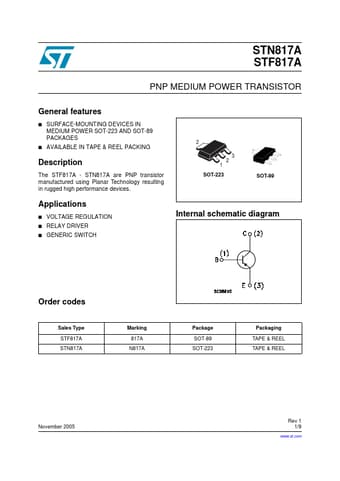

Preview of STN817A PDF
datasheet Preview Page 2 datasheet Preview Page 3
