STN93003 Datasheet - ST Microelectronics

High voltage fast-switching PNP power transistor

STN93003 Features

* Medium voltage capability Low spread of dynamic parameters Minimum lot-to-lot spread for reliable operation Very high switching speed SOT-223 plastic package for surface mounting circuits Tape and reel packing 1 2 2 3

* SOT-223 Applications

* Electro

STN93003 General Description

The device is manufactured using high voltage Multi-Epitaxial Planar technology for high switching speeds and medium voltage capability. It uses a Cellular Emitter structure with planar edge termination to enhance switching speeds while maintaining the wide RBSOA. The STN93003 is expressly designed .

STN93003 Datasheet (257.10 KB)

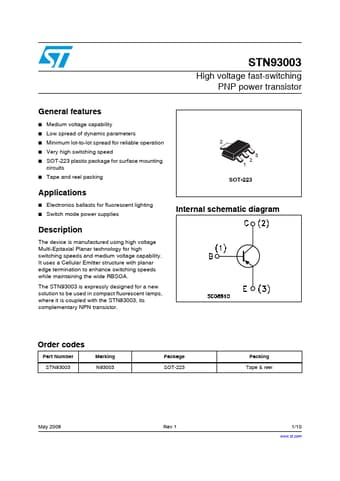

Preview of STN93003 PDF

Datasheet Details

Part number:

STN93003

Manufacturer:

STMicroelectronics ↗

File Size:

257.10 KB

Description:

High voltage fast-switching pnp power transistor.
