STN9260 Datasheet - STMicroelectronics

PNP power transistor

STN9260 General Description

This device is a high voltage fast-switching PNP power transistor. It is manufactured using high voltage multi epitaxial planar technology for high switching speeds and medium voltage capability. It uses a cellular emitter structure with planar edge termination to enhance switching speeds while main.

STN9260 Datasheet (315.42 KB)

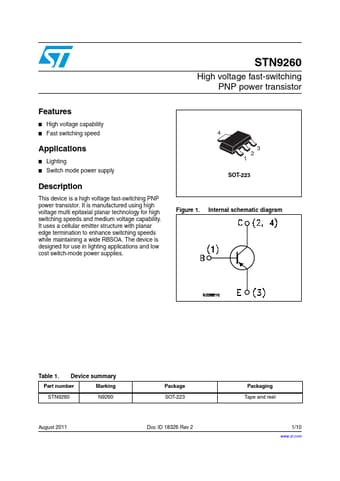

Preview of STN9260 PDF

Datasheet Details

Part number:

STN9260

Manufacturer:

STMicroelectronics ↗

File Size:

315.42 KB

Description:

Pnp power transistor.
