STP4NB100 Datasheet - ST Microelectronics

N-CHANNEL MOSFET

STP4NB100 General Description

Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances. The new patent pending strip layout coupled with the Company’s proprietary edge termination structure, gives the lowest RDS(on) per area, exceptiona.

STP4NB100 Datasheet (109.76 KB)

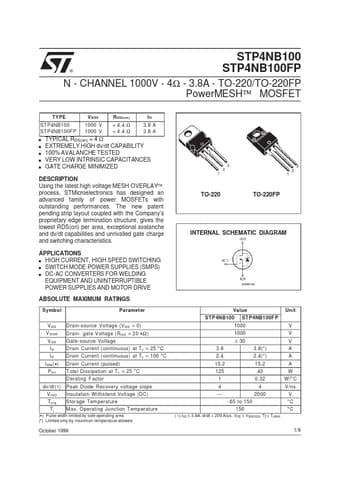

STP4NB100 Datasheet Preview — Preview of STP4NB100 PDF

Datasheet Details

Part number:

STP4NB100

Manufacturer:

STMicroelectronics ↗

File Size:

109.76 KB

Description:

N-channel mosfet.
® STP4NB100 STP4NB100FP N - CHANNEL 1000V - 4Ω - 3.8A - TO-220/TO-220FP PowerMESH™ MOSFET TYPE ST P4NB100 ST P4NB100FP s s s s s V DSS 1000 V 1000 .
