STP4N80K5 Datasheet - STMicroelectronics

N-CHANNEL MOSFET

STP4N80K5 Features

* Order codes VDS RDS(on) max ID STD4N80K5 STF4N80K5 800 V STP4N80K5 2.5 Ω 3A STU4N80K5

* Outstanding RDS(on)

* area

* Worldwide best FOM (figure of merit)

* Ultra low gate charge

* 100% avalanche tested

* Zener-protected PTOT 60 W 20 W 60 W Applica

STP4N80K5 General Description

These N-channel Zener-protected Power MOSFETs are designed using ST’s revolutionary avalanche-rugged very high voltage SuperMESH™ 5 technology, based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance, and ultra-low gate charge for applications which.

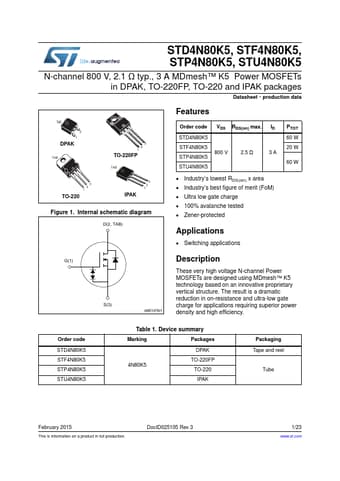

STP4N80K5 Datasheet (1.21 MB)

STP4N80K5 Datasheet Preview — Preview of STP4N80K5 PDF

Datasheet Details

Part number:

STP4N80K5

Manufacturer:

STMicroelectronics ↗

File Size:

1.21 MB

Description:

N-channel mosfet.
STD4N80K5, STF4N80K5, STP4N80K5, STU4N80K5 N-channel 800 V, 2.1 Ω typ., 3 A Zener-protected SuperMESH™ 5 Power MOSFETs in DPAK, TO-220FP, TO-220 and I.
