STP4N52K3 Datasheet, Mosfet, STMicroelectronics

STP4N52K3 Features

  • Mosfet Order codes VDSS RDS(on) max ID Pw STD4N52K3 STF4N52K3 STP4N52K3 STU4N52K3 525 V < 2.6 Ω 2.5 A 45 W 2.5 A 20 W (1) 2.5 A 45 W 2.5 A 45 W 1. Limited by package
  • 100% a

PDF File Details

Part number:

STP4N52K3

Manufacturer:

STMicroelectronics ↗

File Size:

554.26kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These SuperMESH3™ Power MOSFETs are the result of improvements applied to STMicroelectronics’ SuperMESH™ technology, combined with a

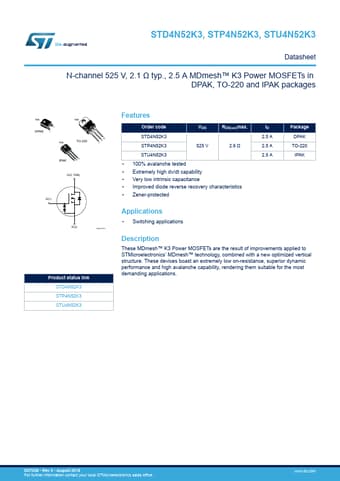

Datasheet Preview: STP4N52K3 📥 Download PDF (554.26kb)
Page 2 of STP4N52K3 Page 3 of STP4N52K3

STP4N52K3 Application

  • Applications Description These SuperMESH3™ Power MOSFETs are the result of improvements applied to STMicroelectronics’ SuperMESH™ technology, comb
