STP4NC80Z N-CHANNEL MOSFET

STP4NC80Z Description

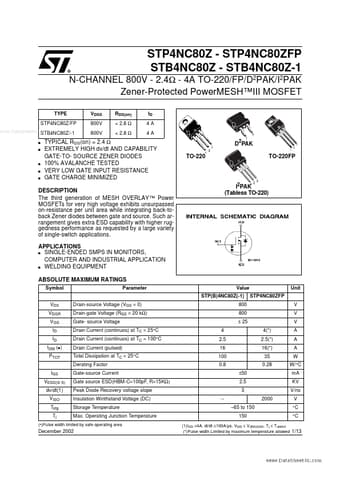

STP4NC80Z - STP4NC80ZFP STB4NC80Z - STB4NC80Z-1 N-CHANNEL 800V - 2.4Ω - 4A TO-220/FP/D2PAK/I2PAK Zener-Protected PowerMESH™III MOSFET TYPE STP4NC80Z/F.
The third generation of MESH OVERLAY™ Power MOSFETs for very high voltage exhibits unsurpassed on-resistance per unit area while integrating back-toba.

STP4NC80Z Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta

STP4NC80Z Applications

* APPLICATIONS SINGLE-ENDED SMPS IN MONITORS, COMPUTER AND INDUSTRIAL APPLICATION s WELDING EQUIPMENT s 1 I2PAK (Tabless TO-220) 23 ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q ) PTOT IGS VESD(G-S) dv/dt(1) VISO Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS
