STPS16L40CT

LOW DROP POWER SCHOTTKY RECTIFIER

STPS16L40CT Features

* LOW FORWARD VOLTAGE DROP FOR LESS POWER DISSIPATION NEGLIGIBLE SWITCHING LOSSES ALLOWING HIGH FREQUENCY OPERATION AVALANCHE RATED A1 2x8A 40 V 150 °C 0.45 V A1 K A2 A2 K DESCRIPTION Dual center tap Schottky barrier rectifier designed for high frequency Switched Mode Power Supplies and high frequ

STPS16L40CT General Description

Dual center tap Schottky barrier rectifier designed for high frequency Switched Mode Power Supplies and high frequency DC to DC converters. Packaged in TO-220AB this device is intended for use in low voltage, high frequency converters, free-wheeling and polarity protection applications. ABSOLUTE RAT.

STPS16L40CT Datasheet (66.11 KB)

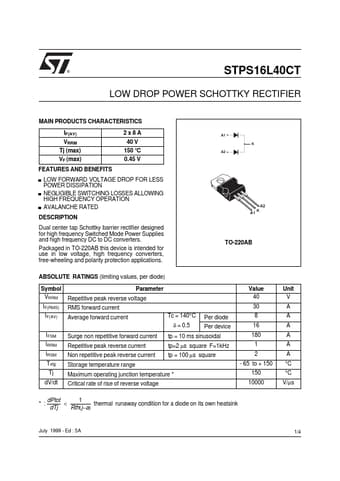

Preview of STPS16L40CT PDF

Datasheet Details

Part number:

STPS16L40CT

Manufacturer:

STMicroelectronics ↗

File Size:

66.11 KB

Description:

Low drop power schottky rectifier.
