STTA1206D (STTA1206xx) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE

ST Microelectronics

Description

® STTA1206D/DI/G TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM trr (typ) VF (max) .
TURBOSWITCH, family, drastically cuts losses in both the diode and the associated switching IGBT or MOSFET in all “freewheel mode” operations and is p.

📥 Download Datasheet

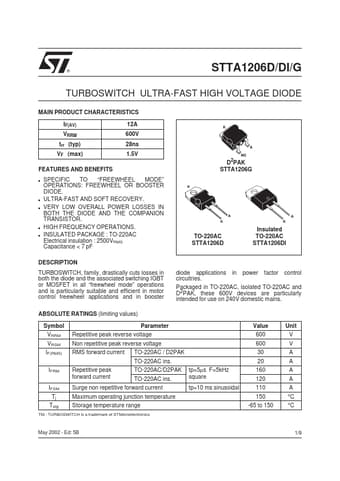

STTA1206D Datasheet Preview — Preview of STTA1206D PDF

Datasheet Specifications

Part number: STTA1206D
Manufacturer: STMicroelectronics ↗
File Size: 139.10 KB
Datasheet: STTA1206D_STMicroelectronics.pdf
Description: (STTA1206xx) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE

Features

* s 12A 600V 28ns 1.5V K A NC D2PAK STTA1206G K s s s s SPECIFIC TO “FREEWHEEL MODE” OPERATIONS: FREEWHEEL OR BOOSTER DIODE. ULTRA-FAST AND SOFT RECOVERY. VERY LOW OVERALL POWER LOSSES IN BOTH THE DIODE AND THE COMPANION TRANSISTOR. HIGH FREQUENCY OPERATIONS. INSULATED PACKAGE : TO-220AC Elec

Applications

* and in booster ABSOLUTE RATINGS (limiting values) Symbol VRRM VRSM IF(RMS) IFRM IFSM Tj Tstg Parameter Repetitive peak reverse voltage Non repetitive peak reverse voltage RMS forward current Repetitive peak forward current TO-220AC / D2PAK TO-220AC ins. TO-220AC/D2PAK TO-220AC ins. tp=5µs F=5kHz squ
