STW47NM60 N-CHANNEL MOSFET

STW47NM60 Description

www.DataSheet4U.com STW47NM60 N-CHANNEL 600V - 0.075Ω - 47A TO-247 MDmesh™Power MOSFET ADVANCED DATA TYPE STW47NM60 VDSS 600V RDS(on) < 0.09Ω Rds(on).
This improved version of MDmesh™ which is based on Multiple Drain process represents the new benchmark in high voltage MOSFETs.

STW47NM60 Applications

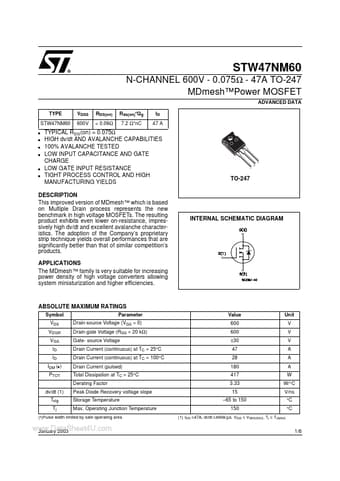

* The MDmesh™ family is very suitable for increasing power density of high voltage converters allowing system miniaturization and higher efficiencies. 3 2 1 TO-247 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM ( ) PTOT dv/dt (1) Tstg Tj Parameter Drain-source Vo
