STW47NM60ND Datasheet - STMicroelectronics

N-CHANNEL MOSFET

STW47NM60ND Features

* 3 2 1 TO-247 Figure 1. Internal schematic diagram Order code VDS @ TJMAX RDS(on) max ID STW47NM60ND 650 V 0.088 Ω 35 A

* Designed for automotive applications and AEC-Q101 qualified

* The worldwide best RDS(on)

* area amongst the fast recovery diode devices

* 100% avala

STW47NM60ND General Description

This device is an N-channel Power MOSFET developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most .

STW47NM60ND Datasheet (673.47 KB)

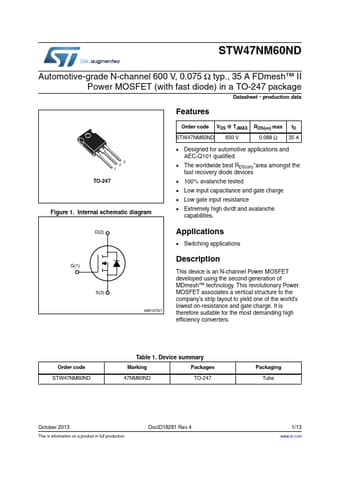

STW47NM60ND Datasheet Preview — Preview of STW47NM60ND PDF

Datasheet Details

Part number:

STW47NM60ND

Manufacturer:

STMicroelectronics ↗

File Size:

673.47 KB

Description:

N-channel mosfet.
STW47NM60ND Automotive-grade N-channel 600 V, 0.075 Ω typ., 35 A FDmesh™ II Power MOSFET (with fast diode) in a TO-247 package Datasheet - production.
