TDA7377 Datasheet, amplifier equivalent, ST Microelectronics

TDA7377 Features

• Amplifier OSTICS INFORMAFigure 23: Output Fault Waveforms (see fig. 24) Supposing that the output capacitor C out for any reason is shorted, the loudspeaker will not be damaged being this soft s

PDF File Details

Part number:

TDA7377

Manufacturer:

STMicroelectronics ↗

File Size:

254.57kb

Download:

📄 Datasheet

Description:

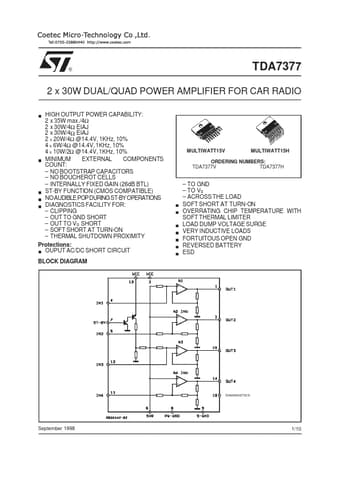

2 x 30w dual/quad power amplifier. The TDA7377 is a new technology class AB car radio amplifier able to work either in DUAL BRIDGE or QUAD SINGLE ENDED configuration. T

TDA7377 Application

• Applications ranging from 4 speakers stereo (F/R) to 2 speakers bridge solutions. In case of working in single ended conditions the polarity of the
