TDA7381 4 x 25W QUAD BRIDGE CAR RADIO AMPLIFIER

The TDA7381 is a new technology class AB Audio Power Amplifier in Flexiwatt 25 package designed for car radio applications. Vcc2 2.200µF 100nF ST-BY DIAGN. OUT MUTE OUT1+ IN1 0.1µF OUT1PW-GND OUT2+ IN2 0.1µF OUT2PW-GND OUT3+ IN3 0.1µF OUT3PW-GND OUT4+ IN4 0.1µF AC-GND 0.1µF SVR 47µF TAB S-GND OUT4.

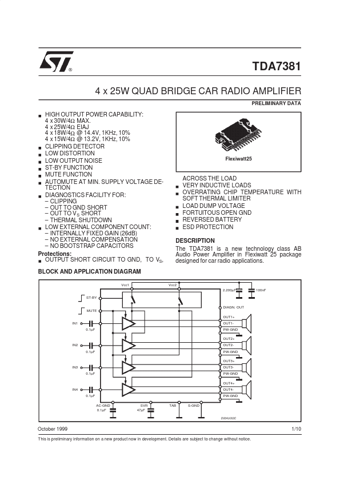

® TDA7381 4 x 25W QUAD BRIDGE CAR RADIO AMPLIFIER PRELIMINARY DATA HIGH OUTPUT POWER CAPABILITY: 4 x 30W/4Ω MAX. 4 x 25W/4Ω EIAJ 4 x 18W/4Ω @ 14.4V, 1KHz, 10% 4 x 15W/4Ω @ 13.2V, 1KHz, 10% CLIPPING DETECTOR LOW DISTORTION LOW OUTPUT NOISE ST-BY FUNCTION MUTE FUNCTION AUTOMUTE AT MIN. SUPPLY VOLTAGE DETECTION DIAGNOSTICS FACILITY FOR: CLIPPING OUT TO GND SHORT OUT TO V S SHORT THERMAL SHUTDOWN LOW EXTERNAL COMPONENT COUNT: INTERNALLY FIXED GAIN .
