TDA7382 4 x 22W FOUR BRIDGE CHANNELS CAR RADIO AMPLIFIER

The TDA7382 is a new technology class AB Audio Power Amplifier in Flexiwatt 25 package designed for high end car radio applications. Thanks to the fully complementary PNP/NPN output configuration the TDA7382 allows a rail to rail output voltage swing with no need of bootstrap capacitors. The extreme.
® TDA7382 4 x 22W FOUR BRIDGE CHANNELS CAR RADIO AMPLIFIER HIGH OUTPUT POWER CAPABILITY: 4 x 30W max./4Ω EIAJ 4 x 22W/4Ω @ 14.4V, 1KHz, 10% 4 x 18.5W/4Ω @ 13.2V, 1KHz, 10% CLIPPING DETECTOR (THD = 10%) LOW DISTORTION LOW OUTPUT NOISE ST-BY FUNCTION MUTE FUNCTION AUTOMUTE AT MIN. SUPPLY VOLTAGE DETECTION LOW EXTERNAL COMPONENT COUNT: INTERNALLY FIXED GAIN (26dB) NO EXTERNAL COMPENSATION NO BOOTSTRAP CAPACITORS PROTECTIONS: OUTPUT SHORT CIRCUIT TO GND, TO VS, ACROSS.

TDA7382_STMicroelectronics.pdf

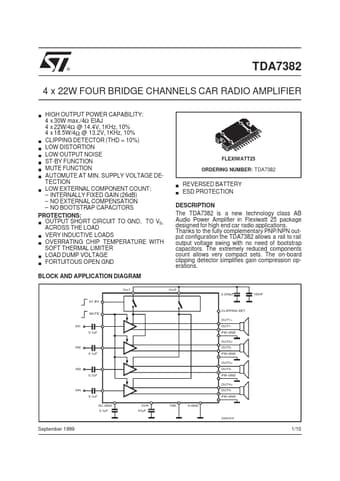

Preview of TDA7382 PDF
