TDA7387

4 x 41 W quad bridge car radio amplifier

STMicroelectronics

TDA7387 Features

* High output power capability:

* 4 x 41 W / 4  max.

* Low distortion

* Low output noise

* Standby function

* Mute function

* Automute at min. supply voltage detection

* Low external component count:

* Internally fixed gain (26 dB)

* No external

TDA7387 General Description

The TDA7387 is an AB class audio power amplifier, packaged in Flexiwatt 25 and designed for high end car radio applications. Based on a fully complementary PNP/NPN configuration, the TDA7387 allows a rail to rail output voltage swing with no need of bootstrap capacitors. The extremely reduced bounda.

TDA7387 Datasheet (610.74 KB)

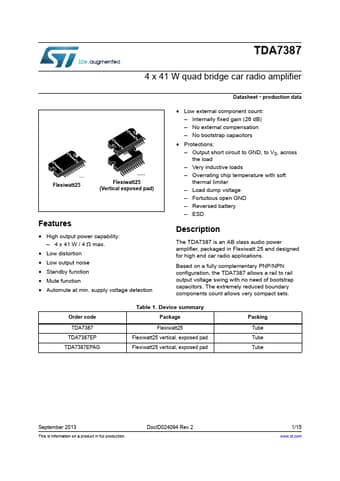

TDA7387 Datasheet Preview — Preview of TDA7387 PDF

Datasheet Details

Part number:

TDA7387

Manufacturer:

STMicroelectronics ↗

File Size:

610.74 KB

Description:

4 x 41 w quad bridge car radio amplifier.
TDA7387 4 x 41 W quad bridge car radio amplifier Datasheet - production data '!0'03 Flexiwatt25 '!0'03 Flexiwatt25 (Vertical exposed pad.
