STP4407 - P-Channel Enhancement Mode MOSFET

The STP4407 by STANSON is a P-Channel Enhancement Mode MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

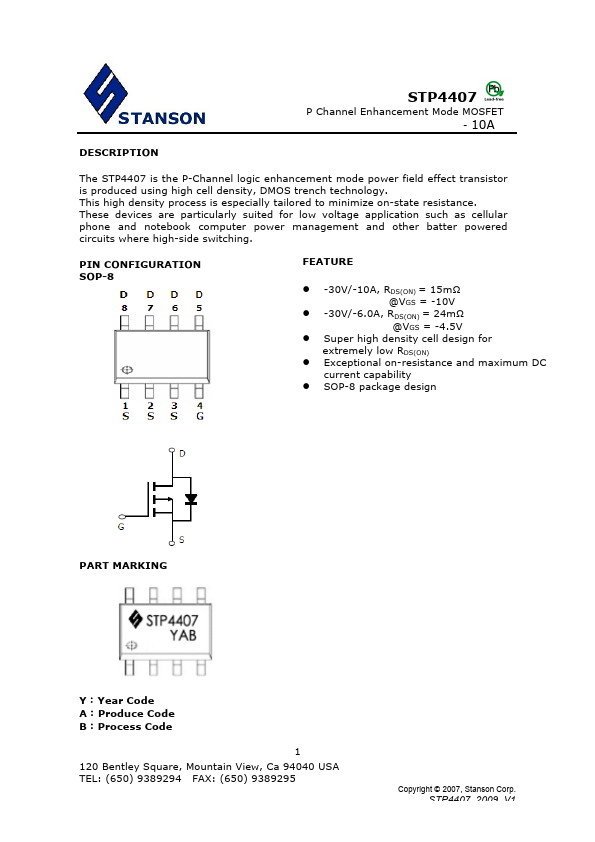

Official preview page of the STP4407 P-Channel Enhancement Mode MOSFET datasheet (STANSON).

Datasheet Details

Part number STP4407
Manufacturer STANSON
File Size 576.98 KB
Description P-Channel Enhancement Mode MOSFET
Datasheet download datasheet STP4407-STANSON.pdf

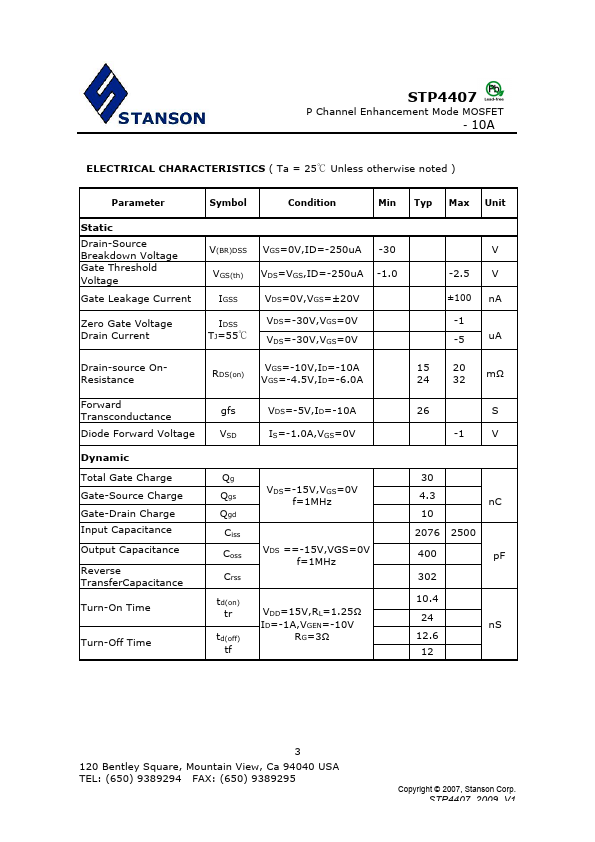

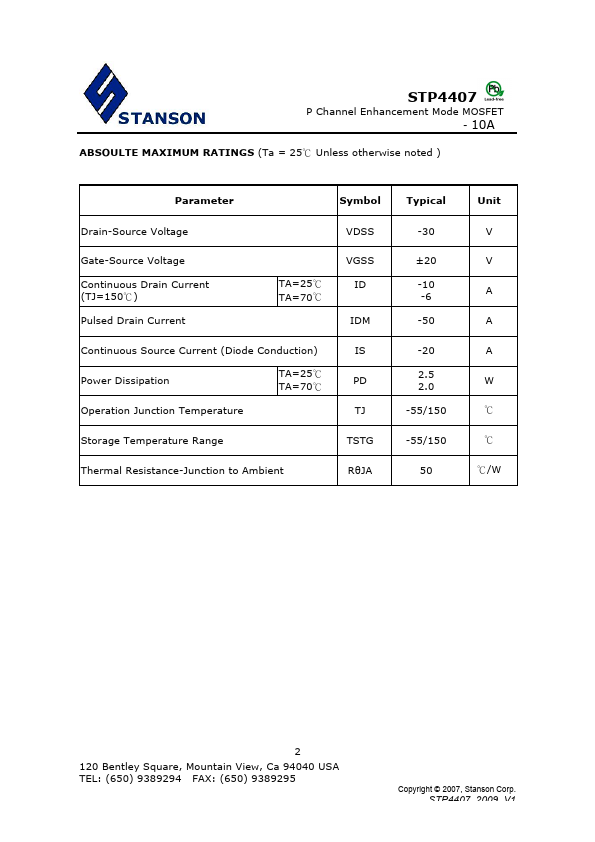

Additional preview pages of the STP4407 datasheet.

STP4407 Product details

Description

The STP4407 is the P-Channel logic enhancement mode power field effect transistor is produced using high cell density, DMOS trench technology. -30V/-10A, RDS(ON) = 15mΩ @VGS = -10V l
