STP4435M Datasheet - Semtron

Single P-Channel MOSFET

STP4435M Features

* VDS = -30V, ID = -10.6A RDS(ON)=14mΩ(Typ.)@VGS=-10V RDS(ON)=18mΩ(Typ.)@VGS=-4.5V

* Fast switch

* High power and current handling capability

* APPLICATIONS

* Load Switch

* LED Application

* DC-DC Power Management D D D D G S S S SOP-8 D G S

* ABSOLUTE MAXIMUM RATINGS (TA = 25°

STP4435M General Description

STP4435 is the P-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior ,fast switching performance, and withstand high energy pulse in the avalanche and commuta.

STP4435M Datasheet (363.81 KB)

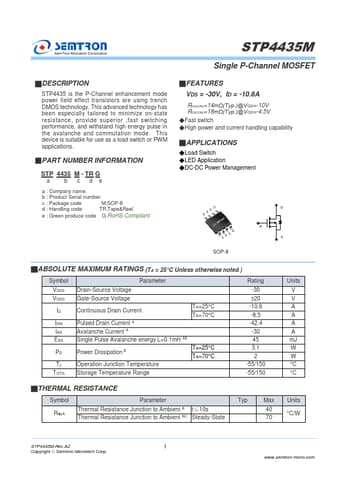

STP4435M Datasheet Preview — Preview of STP4435M PDF

Datasheet Details

Part number:

STP4435M

Manufacturer:

Semtron

File Size:

363.81 KB

Description:

Single p-channel mosfet.
