STP4407A - P-Channel Enhancement Mode MOSFET

STP4407A Description

P-Channel Fast Switching MOSFETs STP4407A -30V P-Channel Fast Switching MOSFETs *.
FEATURE The STP4407A is the P-Channel logic enhancement mode power field effect transistor is produced using high cell density.

STP4407A Applications

* STP4407AM-TRG ROHS Compliant This is Halogen Free
* -30V/-14A, RDS(ON) =8.2mΩ(typ. )@VGS = -20V
* -30V/-12A, RDS(ON) =9.2mΩ(typ. )@VGS = -10V
* -30V/-10A, RDS(ON) =10.8mΩ(typ. )@VGS = -6V
* -30V/-7.0A, RDS(ON) =12.5mΩ(typ. )@VGS = -4.5V
* Super high density cell design for ex

📥 Download Datasheet

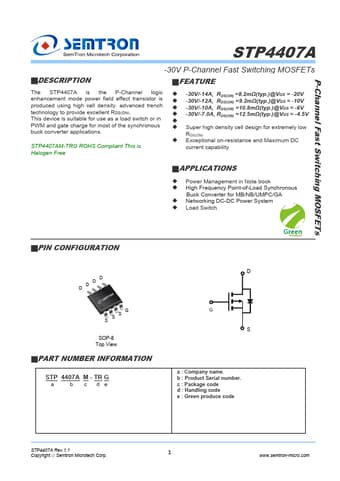

Preview of STP4407A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STP4407A
Manufacturer
Semtron
File Size
376.89 KB
Datasheet
STP4407A-Semtron.pdf
Description
P-Channel Enhancement Mode MOSFET
