STP4407 - P-Channel Enhancement Mode MOSFET

STP4407 Description

P-Channel Enhancement Mode MOSFET STP4407 *.
-30V P-Channel Enhancement Mode MOSFET. FEATURE The STP4407 is the P-Channel logic enhancement mode power field effect transistor is produced us.

STP4407 Applications

* STP4407M-TRG ROHS Compliant This is Halogen Free
* -30V/-12.0A, RDS(ON) =11.5mΩ(typ)@VGS =-10V
* -30V/-10.0A, RDS(ON) =16.5mΩ(typ)@VGS =-4.5V
* Super high density cell design for extremely low RDS(ON)
* Exceptional on-resistance and maximum DC current capability
* SOP-8 package

📥 Download Datasheet

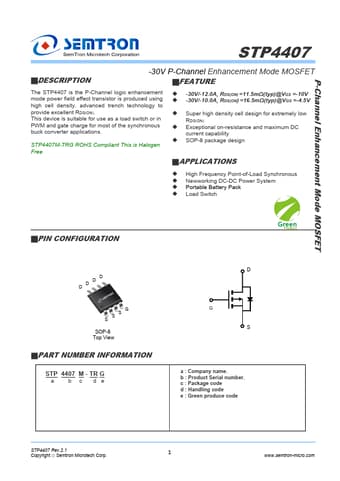

Preview of STP4407 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STP4407
Manufacturer
Semtron
File Size
376.90 KB
Datasheet
STP4407-Semtron.pdf
Description
P-Channel Enhancement Mode MOSFET
