STP2301 Datasheet, Mosfet, Semtron

PDF File Details

Part number:

STP2301

Manufacturer:

Semtron

File Size:

368.76kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode mosfet.

  • FEATURE The STP2301 is the P-Channel logic enhancement mode power field effect transistor is produced using high cell dens

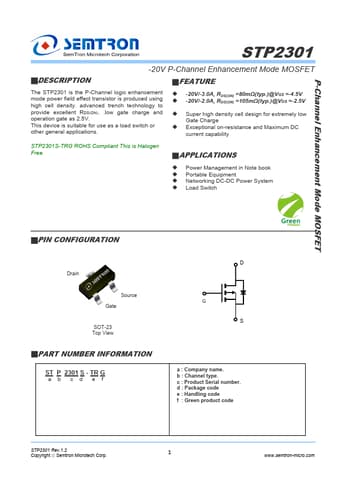

  • Datasheet Preview: STP2301 📥 Download PDF (368.76kb)
    Page 2 of STP2301 Page 3 of STP2301

    STP2301 Application

    • Applications
    • -20V/-3.0A, RDS(ON) =80mΩ(typ.)@VGS =-4.5V
    • -20V/-2.0A, RDS(ON) =105mΩ(typ.)@VGS =-2.5V
    • Super high densi
