STP200N3LL

N-CHANNEL POWER MOSFET

STMicroelectronics

STP200N3LL Features

* Order code VDS STP200N3LL 30 V RDS(on) max. 2.4 mΩ ID 120 A PTOT 176.5 W

* Very low on-resistance

* Very low gate charge

* High avalanche ruggedness

* Low gate drive power loss Applications

* Switching applications Description This device is an N-channel Power MOSFET with ver

STP200N3LL General Description

This device is an N-channel Power MOSFET with very low RDS(on) in all packages. G(1) S(3) Order code STP200N3LL AM01475v1_Tab Table 1: Device summary Marking Package 200N3LL TO-220 Packing Tube July 2016 DocID028758 Rev 2 This is information on a product in full production. 1/13 www.st..

STP200N3LL Datasheet (558.82 KB)

STP200N3LL Datasheet Preview — Preview of STP200N3LL PDF

Datasheet Details

Part number:

STP200N3LL

Manufacturer:

STMicroelectronics ↗

File Size:

558.82 KB

Description:

N-channel power mosfet.

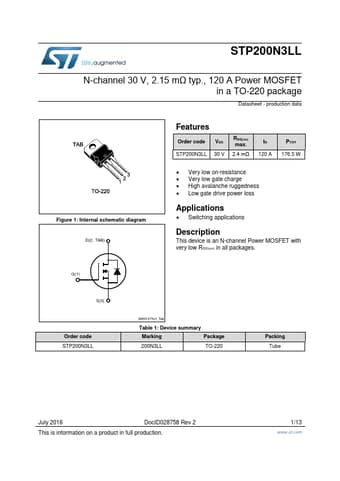

STP200N3LL N-channel 30 V, 2.15 mΩ typ., 120 A Power MOSFET in a TO-220 package Datasheet - production data Figure 1: Internal schematic diagram D(2.
