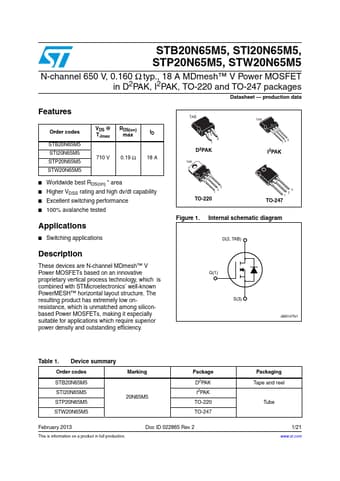

STP20N65M5 Datasheet, Mosfet, STMicroelectronics

STP20N65M5 Features

• Mosfet Order codes STB20N65M5 STI20N65M5 STP20N65M5 STW20N65M5 VDS @ TJmax RDS(on) max ID 710 V 0.19 Ω 18 A
• Worldwide best RDS(on)
• area
• Higher VDSS rating a

PDF File Details

Part number:

STP20N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

786.34kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined

STP20N65M5 Application

• Applications
• Switching applications TAB 2 1 D2PAK 3 TAB TAB 123 I2PAK 3 2 1 TO-220 3 2 1 TO-247 Figure 1. Internal schematic diagr
