STP20N20 Datasheet, Mosfet, ST Microelectronics

STP20N20 Features

  • Mosfet TYPE STD20N20 STF20N20 STP20N20 s s s s Figure 1: Package Id 18 A 18 A 18 A PTOT 90 W 25 W 90 W 3 1 2 1 3 2 VDSS 200 V 200 V 200 V RDS(on) < 0.125 Ω < 0.125 Ω < 0.125 Ω TYPICAL RDS(

PDF File Details

Part number:

STP20N20

Manufacturer:

STMicroelectronics ↗

File Size:

405.53kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacita

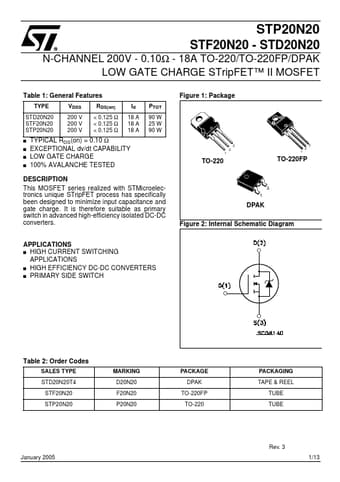

Datasheet Preview: STP20N20 📥 Download PDF (405.53kb)
Page 2 of STP20N20 Page 3 of STP20N20

STP20N20 Application

  • Applications s HIGH CURRENT SWITCHING APPLICATIONS s HIGH EFFICIENCY DC-DC CONVERTERS s PRIMARY SIDE SWITCH Table 2: Order Codes SALES TYPE STD20N2
