STP20N10 Datasheet - ST Microelectronics

STP20N10 N-CHANNEL POWER MOSFET

STP20N10 N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR TYPE STP20N10 s s s s s s s s V DSS 100 V R DS( on) < 0.12 Ω ID 20 A TYPICAL RDS(on) = 0.09 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW GATE CHARGE HIGH CURRENT CAPABILITY 175oC OPERATING TEMPERATURE APPLICATION ORIENTED CHARACTERIZATION 3 1 2 TO-220 APPLICATIONS HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s REGULATORS s DC-DC & DC-AC CONVERTERS s MOTOR CONTROL, AU.

STP20N10_STMicroelectronics.pdf

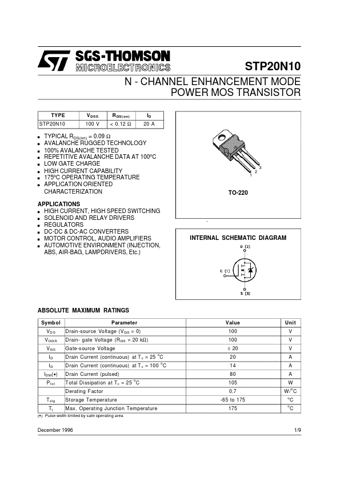

Preview of STP20N10 PDF
STP20N10 Datasheet Preview Page 2 STP20N10 Datasheet Preview Page 3

Datasheet Details

Part number:

STP20N10

Manufacturer:

STMicroelectronics ↗

File Size:

140.58 KB

Description:

N-channel power mosfet.
