STP20NM50FD

N-Channel MOSFET

STP20NM50FD Features

* Drain Current ID= 20A@ TC=25℃

* Drain Source Voltage- : VDSS= 500V(Min)

* Fast Switching Speed

* 100% avalanche tested

* Minimum Lot-to-Lot variations for robust device performance and reliable operation

* APPLICATIONS

* Switching applications

* ABSOLUTE MAXIMUM RATINGS(T

STP20NM50FD Datasheet (254.52 KB)

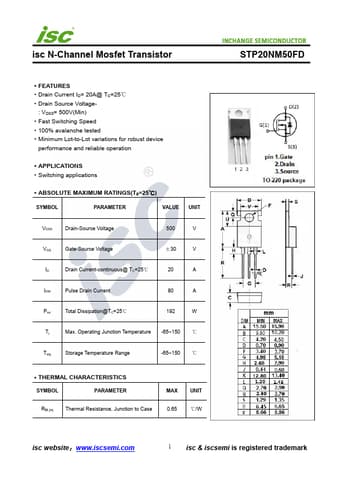

Preview of STP20NM50FD PDF

Datasheet Details

Part number:

STP20NM50FD

Manufacturer:

INCHANGE

File Size:

254.52 KB

Description:

N-channel mosfet.
