STP20N65M5 - N-Channel MOSFET

STP20N65M5 Description

Isc N-Channel MOSFET Transistor *.

STP20N65M5 Features

* Typical RDS(on)=0.16Ω
* Excellent switching performance
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation INCHANGE Semiconductor STP20N65M5

STP20N65M5 Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 650 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous@TC=25℃ TC=100℃ Drain Current-Single Pulsed ±25 18 11.3 72 PD Total Dissipation 130 Tj Operating Junction Temp

📥 Download Datasheet

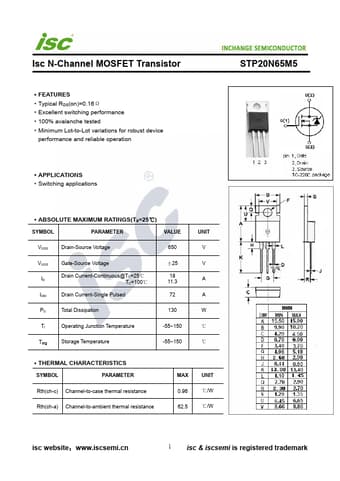

Preview of STP20N65M5 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP20N65M5
Manufacturer
INCHANGE
File Size
201.59 KB
Datasheet
STP20N65M5-INCHANGE.pdf
Description
N-Channel MOSFET
