STP20NM60FP - N-Channel MOSFET

STP20NM60FP Description

isc N-Channel MOSFET Transistor *.

STP20NM60FP Features

* With TO-220F packaging
* High speed switching
* Low gate input resistance
* Standard level gate drive
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STP20NM60FP Applications

* Power supply
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 600 VGSS Gate-Source Voltage ±30 ID Drain Current-Continuous 20 IDM Drain Current-Single Pulsed 80 PD Total Dissipation 45 Tj Operating Junction T

📥 Download Datasheet

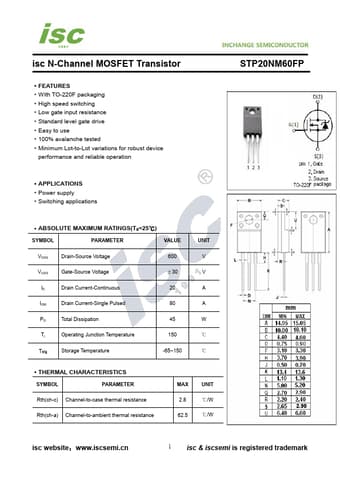

Preview of STP20NM60FP PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP20NM60FP
Manufacturer
INCHANGE
File Size
250.73 KB
Datasheet
STP20NM60FP-INCHANGE.pdf
Description
N-Channel MOSFET
