STP20N10L - N-Channel MOSFET

STP20N10L Description

isc N-Channel MOSFET Transistor *.

STP20N10L Features

* With TO-220 packaging
* High speed switching
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STP20N10L Applications

* Power supply
* DC-DC converters
* Motor control
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous @Tc=25℃ Tc=100℃ Drain Current-Single Pulsed ±15 20 14 8

📥 Download Datasheet

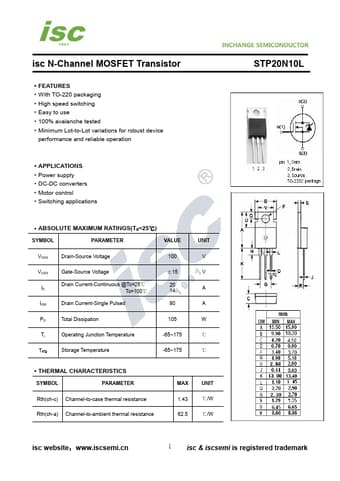

Preview of STP20N10L PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP20N10L
Manufacturer
INCHANGE
File Size
255.86 KB
Datasheet
STP20N10L-INCHANGE.pdf
Description
N-Channel MOSFET
