STP20NM60 Datasheet, Mosfet, INCHANGE

STP20NM60 Features

  • Mosfet
  • Typical RDS(on)=0.25Ω
  • Low input capacitance and gate charge
  • Low gate input resistances
  • 100% avalanche tested
  • Minimum Lot-to-Lot variations f

PDF File Details

Part number:

STP20NM60

Manufacturer:

INCHANGE

File Size:

185.70kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

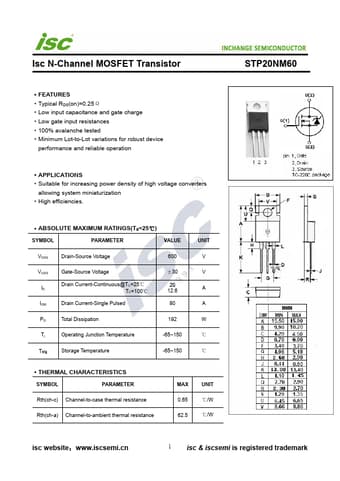

Datasheet Preview: STP20NM60 📥 Download PDF (185.70kb)
Page 2 of STP20NM60

STP20NM60 Application

  • Applications
  • Suitable for increasing power density of high voltage converters allowing system miniaturization
  • High efficiencies.
