STP20NM60FP - N-CHANNEL POWER MOSFET

STP20NM60FP Description

STB20NM60-1 - STP20NM60FP STB20NM60 - STP20NM60 - STW20NM60 N-channel 600V - 0.25Ω - 20A - TO-247 - TO-220/FP - D2/I2PAK MDmesh™ Power MOSFET .
The MDmesh™ is a new revolutionary Power MOSFET technology that associates the multiple drain process with the company’s PowerMESH™ horizontal layout.

STP20NM60FP Features

* Type STP20NM60 STP20NM60FP STB20NM60 STB20NM60-1 STW20NM60 VDSS 600V 600V 600V 600V 600V RDS(on) < 0.29Ω < 0.29Ω < 0.29Ω < 0.29Ω < 0.29Ω ID 20A 20A 20A 20A 20A
* High dv/dt and avalanche capabilities
* 100% avalanche tested
* Low input capacitance and gate charge
* Low gate inpu

📥 Download Datasheet

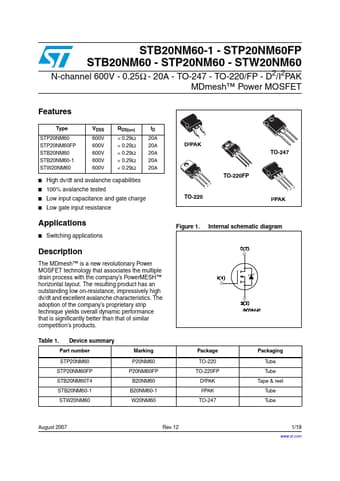

Preview of STP20NM60FP PDF
datasheet Preview Page 2 datasheet Preview Page 3
