STP20NM60FD Datasheet, Mosfet, ST Microelectronics

STP20NM60FD Features

  • Mosfet Type STF20NM60D STP20NM60FD STW20NM60FD
  • VDSS 600V 600V 600V RDS(on) <0.29Ω <0.29Ω <0.29Ω ID 20A 20A 20A Pw 192W 45W 214W TO-247 3 1

PDF File Details

Part number:

STP20NM60FD

Manufacturer:

STMicroelectronics ↗

File Size:

363.41kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The FDmesh™ associates all advantages of www.DataSheet4U.com reduced on-resistance and fast switching with an intrinsic fast-recovery

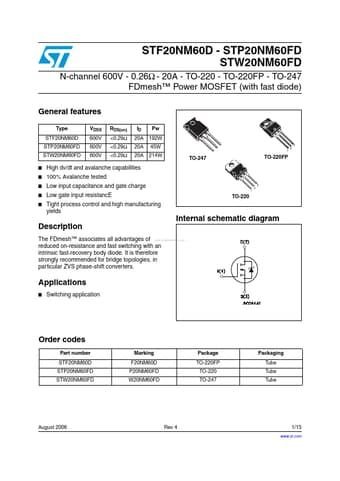

Datasheet Preview: STP20NM60FD 📥 Download PDF (363.41kb)
Page 2 of STP20NM60FD Page 3 of STP20NM60FD

STP20NM60FD Application

  • Applications
  • Switching application Order codes Part number STF20NM60D STP20NM60FD STW20NM60FD Marking F20NM60D P20NM60FD W20NM60FD Packa
