STP20NM60 - N-CHANNEL POWER MOSFET

Product Overview

ST Microelectronics

Datasheet Details

Part number	STP20NM60
Manufacturer	STMicroelectronics
File Size	408.31 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STP20NM60 Datasheet

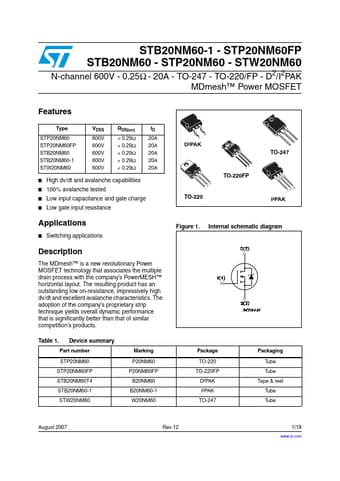

Additional preview pages of the STP20NM60 datasheet.

Product details

Description

The MDmesh™ is a new revolutionary Power MOSFET technology that associates the multiple drain process with the company’s PowerMESH™ horizontal layout.

Features

Type STP20NM60 STP20NM60FP STB20NM60 STB20NM60-1 STW20NM60 VDSS 600V 600V 600V 600V 600V RDS(on) < 0.29Ω < 0.29Ω < 0.29Ω < 0.29Ω < 0.29Ω ID 20A 20A 20A 20A 20A.
High dv/dt and avalanche capabilities.
100% avalanche tested.
Low input capacitance and gate charge.
Low gate input resistance.
