STP20NM50FD

N-CHANNEL POWER MOSFET

STP20NM50FD Features

* Type VDSS RDS(on) max RDS(on)

* Qg ID STB20NM50FD 500 V < 0.25 Ω 8.36 Ω

* nC STF20NM50FD 500 V < 0.25 Ω 8.36 Ω

* nC STP20NM50FD 500 V < 0.25 Ω 8.36 Ω

* nC 20 A 20 A 20 A

* High dv/dt and avalanche capabilities

* 100% avalanche tested

* Low input capacitance and gate

STP20NM50FD General Description

The FDmesh™ associates all advantages of reduced on-resistance and fast switching with an intrinsic fast-recovery body diode. It is therefore strongly recommended for bridge topologies, in particular ZVS phase-shift converters. 3 2 1 TO-220FP 3 1 D²PAK 3 2 1 TO-220 Figure 1. Internal schematic d.

STP20NM50FD Datasheet (368.93 KB)

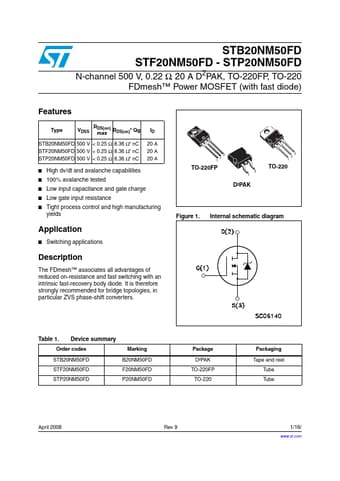

Preview of STP20NM50FD PDF

Datasheet Details

Part number:

STP20NM50FD

Manufacturer:

STMicroelectronics ↗

File Size:

368.93 KB

Description:

N-channel power mosfet.
