STP23NM50N N-Channel MOSFET

STP23NM50N Description

isc N-Channel MOSFET Transistor .
Low Drain-Source On-Resistance APPLICATIONS. Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source.

STP23NM50N Features

* Drain Current
* ID= 17A@ TC=25℃
* Drain Source Voltage- : VDSS= 500V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 190mΩ(Max)
* 100% avalanche tested

STP23NM50N Applications

* Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25℃ TJ Max. Operating Junction Temperature Tstg Storage Tempe

📥 Download Datasheet

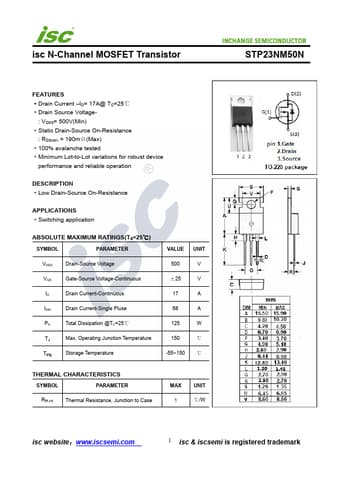

Preview of STP23NM50N PDF
