STP2305A - -20V P-Channel Enhancement Mode MOSFET

STP2305A Description

P-Channel Enhancement Mode MOSFET STP2305A -20V P-Channel Enhancement Mode MOSFET *.
FEATURE The STP2305A is the P-Channel logic enhancement mode power field effect transistor is produced using high cell density.

STP2305A Applications

* ‹ High Frequency Point-of-Load Synchronous ‹ Newworking DC-DC Power System ‹ Load Switch
* PIN CONFIGURATION D D S G TOP VIEW SOT-23 G S P-Channel
* PART NUMBER INFORMATION STP2305AX- XX X Lead Plating Code Handling Code Package Code Lead Plating Code G : Green product. This product is

📥 Download Datasheet

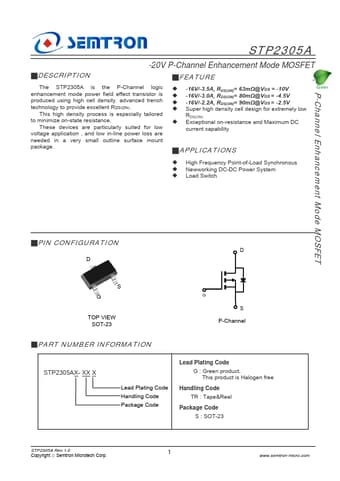

Preview of STP2305A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STP2305A
Manufacturer
Semtron
File Size
157.48 KB
Datasheet
STP2305A-Semtron.pdf
Description
-20V P-Channel Enhancement Mode MOSFET
