STP3401A P-Channel Enhancement Mode MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

P-Channel Enhancement Mode MOSFET STP3401A *.
-30V P-Channel Enhancement Mode MOSFET. FEATURE The STP3401A is the P-Channel logic enhancement mode power field effect transistor is produced u.

📥 Download Datasheet

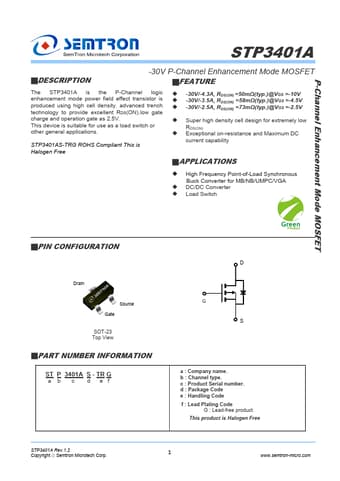

Preview of STP3401A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
STP3401A
Manufacturer
Semtron
File Size
370.25 KB
Datasheet
STP3401A-Semtron.pdf
Description
P-Channel Enhancement Mode MOSFET

Applications

* STP3401AS-TRG ROHS Compliant This is Halogen Free
* -30V/-4.3A, RDS(ON) =50mΩ(typ. )@VGS =-10V
* -30V/-3.5A, RDS(ON) =58mΩ(typ. )@VGS =-4.5V
* -30V/-2.5A, RDS(ON) =73mΩ(typ. )@VGS =-2.5V
* Super high density cell design for extremely low RDS(ON)
* Exceptional on-resistance and Max
