STP34N65M5

N-channel Power MOSFET

STMicroelectronics

STP34N65M5 Features

* Order codes VDS @ TJmax STB34N65M5 STI34N65M5 STP34N65M5 710 V STW34N65M5 RDS(on) max 0.11 Ω ID 28 A

* Worldwide best RDS(on)

* area

* Higher VDSS rating and high dv/dt capability

* Excellent switching performance

* 100% avalanche tested Applications

STP34N65M5 General Description

These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure. The resulting product has extremely low onresistance, which is unmatched among siliconbase.

STP34N65M5 Datasheet (1.34 MB)

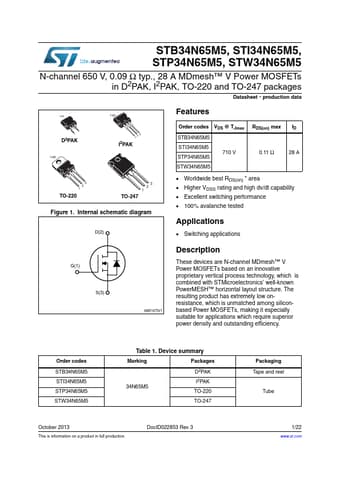

STP34N65M5 Datasheet Preview — Preview of STP34N65M5 PDF

Datasheet Details

Part number:

STP34N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

1.34 MB

Description:

N-channel power mosfet.
STB34N65M5, STI34N65M5, STP34N65M5, STW34N65M5 N-channel 650 V, 0.09 Ω typ., 28 A MDmesh™ V Power MOSFETs in D2PAK, I2PAK, TO-220 and TO-247 packages .
