STP3407S

Single P-Channel MOSFET

STP3407S Features

* VDS=-30V, ID=-4.3A RDS(ON)=38mΩ(Typ.)@VGS=-10V RDS(ON)=58mΩ(Typ.)@VGS=-4.5V

* APPLICATIONS

* Portable Equipment

* Power Management

* Load Switch D D S G SOT-23L G S

* ABSOLUTE MAXIMUM RATINGS (TA=25°C Unless otherwise noted ) Symbol VDSS VGSS Drain-Source Voltage Gate-Source Vo

STP3407S General Description

STP3407S is the P-Channel trench technology devices are well suited for high efficiency fast switching applications, low in-line power loss needed in small outline surface mount package.
*PART NUMBER INFORMATION STP 3407 S - TR G a b c de a : Company name. b : Product Serial number. c : Pack.

STP3407S Datasheet (334.81 KB)

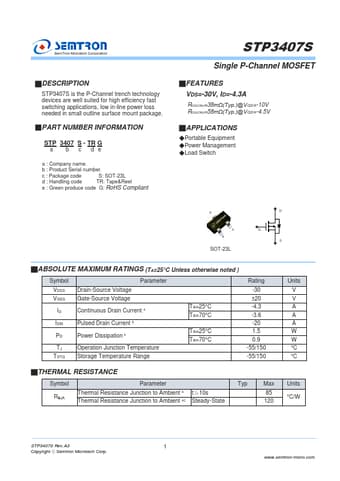

Preview of STP3407S PDF

Datasheet Details

Part number:

STP3407S

Manufacturer:

Semtron

File Size:

334.81 KB

Description:

Single p-channel mosfet.
