STP3415 P-Channel Enhancement Mode MOSFET

STP3415 Description

P-Channel Enhancement Mode MOSFET STP3415 -20V P-Channel Enhancement Mode MOSFET *.
FEATURE The STP3415 is the P-Channel logic enhancement mode power field effect transistor is produced using high cell density.

STP3415 Applications

* STP3415S-TRG ROHS Compliant This is Halogen Free
* -20V/-4.0A, RDS(ON) =44mΩ(typ. )@VGS =-4.5V
* -20V/-4.0A, RDS(ON) =53mΩ(typ. )@VGS =-2.5V
* -20V/-2.0A, RDS(ON) =66mΩ(typ. )@VGS =-1.8V
* -20V/-1.0A, RDS(ON) =85mΩ(typ. )@VGS =-1.5V
* Super high density cell design for extremely lo

📥 Download Datasheet

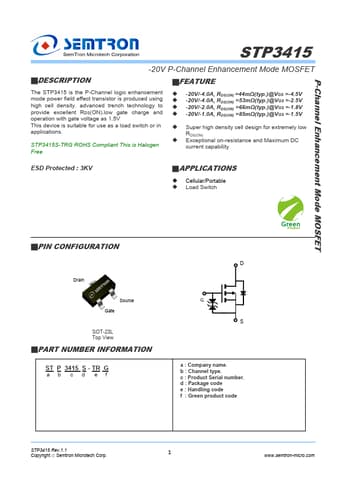

Preview of STP3415 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STP3415
Manufacturer
Semtron
File Size
372.62 KB
Datasheet
STP3415-Semtron.pdf
Description
P-Channel Enhancement Mode MOSFET
