STP3401AS - Single P-Channel MOSFET

Product Overview

Semtron

Datasheet Details

Part number	STP3401AS
Manufacturer	Semtron
File Size	308.92 KB
Description	Single P-Channel MOSFET
Datasheet	STP3401AS Datasheet

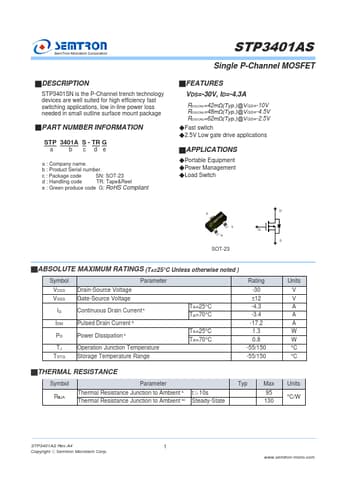

Additional preview pages of the STP3401AS datasheet.

Product details

Description

STP3401SN is the P-Channel trench technology devices are well suited for high efficiency fast switching applications, low in-line power loss needed in small outline surface mount package PART NUMBER INFORMATION STP 3401A S - TR G a b c de a : Company name.b : Product Serial number.c : Package code SN: SOT-23 d : Handling code TR: Tape&Reel e : Green produce code G: RoHS Compliant STP3401AS Single P-Channel MOSFET

Features

VDS=-30V, ID=-4.3A RDS(ON)=42mΩ(Typ. )@VGS=-10V RDS(ON)=48mΩ(Typ. )@VGS=-4.5V RDS(ON)=62mΩ(Typ. )@VGS=-2.5V.
Fast switch.
2.5V Low gate drive.
