STP3401 - P-Channel Enhancement Mode MOSFET

Product Overview

📥 Download Datasheet

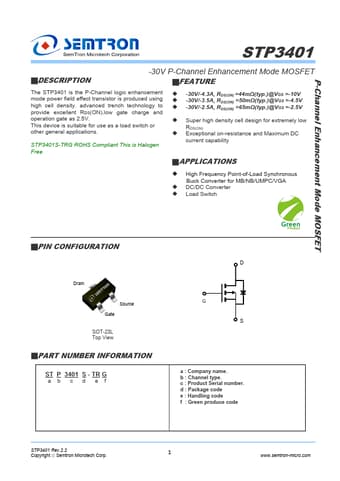

Datasheet preview – STP3401

Datasheet Details

Part number STP3401
Manufacturer Semtron
File Size 369.95 KB
Description P-Channel Enhancement Mode MOSFET
Datasheet download datasheet STP3401 Datasheet
Additional preview pages of the STP3401 datasheet.

Product details

Description

-30V P-Channel Enhancement Mode MOSFET FEATURE The STP3401 is the P-Channel logic enhancement mode power field effect transistor is produced using high cell density.advanced trench technology to provide excellent RDS(ON).low gate charge and operation gate as 2.5V.This device is suitable for use as a load switch or other general applications.STP3401S-TRG ROHS Compliant This is Halogen Free -30V/-4.3A, RDS(ON) =44mΩ(typ.)@VGS =-10V -30V/-3.5A, RDS(ON) =50mΩ(typ.)@VGS =-4.5V
