STP300NH02L Datasheet, Mosfet, ST Microelectronics

STP300NH02L Features

  • Mosfet Type STB300NH02L STP300NH02L
  • VDSS 24V 24V RDS(on) < 1.8mΩ < 2.2mΩ ID 120A 120A 3 1 RDS(on)
  • Qg industry’s benchmark Conduction losses

PDF File Details

Part number:

STP300NH02L

Manufacturer:

STMicroelectronics ↗

File Size:

475.53kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This product utilizes the latest advanced design rules of ST’s proprietary STripFET™ technology. This is suitable for high current OR

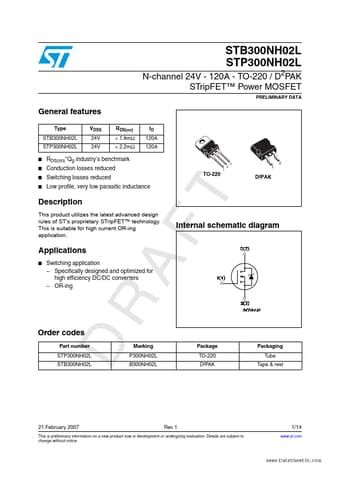

Datasheet Preview: STP300NH02L 📥 Download PDF (475.53kb)
Page 2 of STP300NH02L Page 3 of STP300NH02L

STP300NH02L Application

  • Applications
  • Switching application
      – Specifically designed and optimized for high efficiency DC/DC converters
     &
