STP30NE03LFP, STP30NE03L N - CHANNEL POWER MOSFET

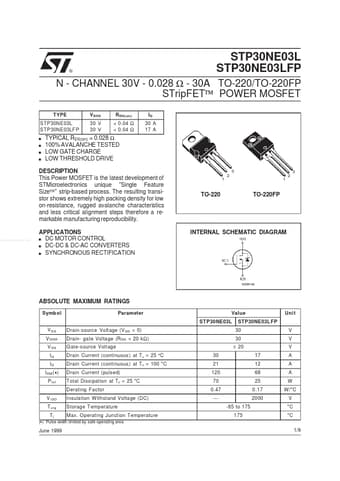

📥 Download Datasheet  Datasheet Preview Page 1

Description

® STP30NE03L STP30NE03LFP N - CHANNEL 30V - 0.028 Ω - 30A TO-220/TO-220FP STripFET™ POWER MOSFET TYPE STP30NE03L STP30NE03LF P s s s s V DSS 30 V 3.
This Power MOSFET is the latest development of STMicroelectronics unique ”Single Feature Size™” strip-based process.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STP30NE03LFP, STP30NE03L. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
STP30NE03LFP, STP30NE03L
Manufacturer
STMicroelectronics ↗
File Size
127.76 KB
Datasheet
STP30NE03L_STMicroelectronics.pdf
Description
N - CHANNEL POWER MOSFET
Note
This datasheet PDF includes multiple part numbers: STP30NE03LFP, STP30NE03L.
Please refer to the document for exact specifications by model.

Applications

* s DC MOTOR CONTROL s DC-DC & DC-AC CONVERTERS s SYNCHRONOUS RECTIFICATION TO-220 TO-220FP INTERNAL SCHEMATIC DIAGRAM www. DataSheet4U. com ABSOLUTE MAXIMUM RATINGS Symb ol Parameter Value ST P30NE03L V DS V DGR V GS ID ID I DM (
* ) P tot V ISO T s tg Tj June 1999 Drain-source Voltage (V
