STP30N05, N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR

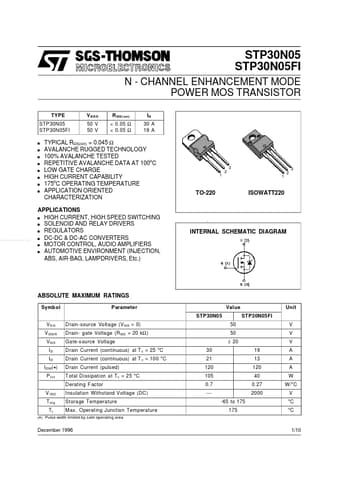

STP30N05 STP30N05FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR TYPE STP30N05 STP30N05FI s s s s s s s s V DSS 50 V 50 V R DS( on) < 0.05 Ω < .

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s REGULATORS s DC-DC & DC-AC CONVERTERS s MOTOR CONTROL, AUDIO AMPLIFIERS s AUTOMOTIVE ENVIRONMENT (INJECTION, ABS, AIR-BAG, LAMPDRIVERS, Etc. ) INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol Parameter STP30N05 VD S V DG
