STP30NE06FP, STP30NE06 N-CHANNEL Power MOSFET

STMicroelectronics

Description

® STP30NE06 STP30NE06FP N - CHANNEL 60V - 0.042 Ω - 30A - TO-220/TO-220FP STripFET™ POWER MOSFET PRELIMINARY DATA TYPE STP30NE06 STP30NE06FP s s s s.
This Power Mosfet is the latest development of STMicroelectronics unique ”Single Feature Size” process whereby a single body is implanted on a strip l.

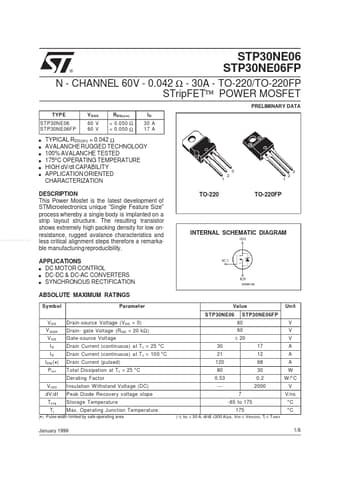

📥 Download Datasheet

STP30NE06FP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP30NE06FP, STP30NE06. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STP30NE06FP, STP30NE06
Manufacturer: STMicroelectronics ↗
File Size: 70.93 KB
Datasheet: STP30NE06_STMicroelectronics.pdf
Description: N-CHANNEL Power MOSFET
Note: This datasheet PDF includes multiple part numbers: STP30NE06FP, STP30NE06.
Please refer to the document for exact specifications by model.

Applications

* s DC MOTOR CONTROL s DC-DC & DC-AC CONVERTERS s SYNCHRONOUS RECTIFICATION ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID I DM (
* ) P tot V ISO dV/dt Ts tg Tj ’ TO-220FP INTERNAL SCHEMATIC DIAGRAM Parameter Drain-source Voltage (VGS = 0) Drain- gate Voltage (R GS = 20 k Ω ) G ate-s
