STP30NF10FP - N-Channel MOSFET

STP30NF10FP Description

Isc N-Channel MOSFET Transistor INCHANGE Semiconductor STP30NF10FP *.

STP30NF10FP Features

* Typical RDS(on)=0.038Ω

STP30NF10FP Applications

* High-efficiency DC-DC coverters
* Motor control
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous@TC=25℃ TC=100℃ Drain Current-Single Pulsed ±20 18 13 72 PD Total Dissipation 30 Tj

📥 Download Datasheet

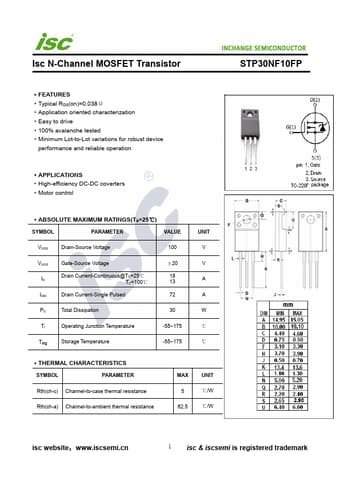

Preview of STP30NF10FP PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP30NF10FP
Manufacturer
INCHANGE
File Size
197.17 KB
Datasheet
STP30NF10FP-INCHANGE.pdf
Description
N-Channel MOSFET
