STP32N65M5 Datasheet, Mosfet, INCHANGE

STP32N65M5 Features

  • Mosfet
  • Drain Current
      –ID=24A@ TC=25℃
  • Drain Source Voltage- : VDSS= 650V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 119mΩ(Max)
  • 100% a

PDF File Details

Part number:

STP32N65M5

Manufacturer:

INCHANGE

File Size:

271.61kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

  • Low Drain-Source On-Resistance APPLICATIONS
  • Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAM

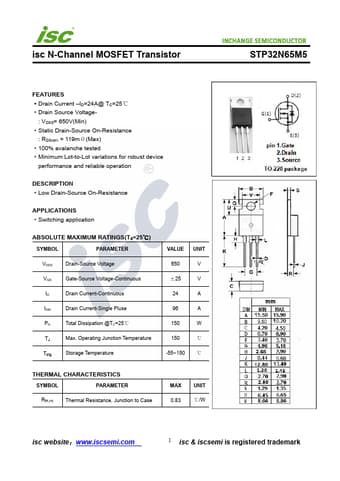

  • Datasheet Preview: STP32N65M5 📥 Download PDF (271.61kb)
    Page 2 of STP32N65M5

    STP32N65M5 Application

    • Applications
    • Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Volta
