STP30NF10 N-Channel MOSFET

STP30NF10 Description

Isc N-Channel MOSFET Transistor *.

STP30NF10 Features

* Typical RDS(on)=0.038Ω

STP30NF10 Applications

* High-efficiency DC-DC coverters
* Motor control
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGSS Gate-Source Voltage ±20 ID Drain Current-Continuous@TC=25℃ 35 IDM Drain Current-Single Pulsed 140 PD Total Dissipation 115 Tj O

📥 Download Datasheet

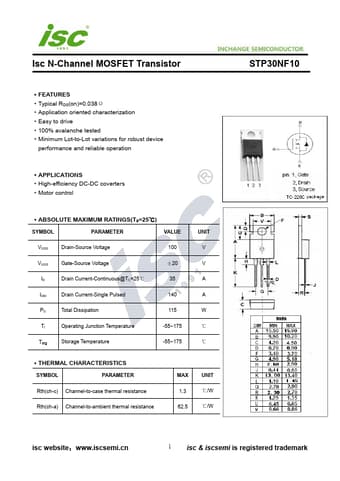

Preview of STP30NF10 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP30NF10
Manufacturer
INCHANGE
File Size
263.08 KB
Datasheet
STP30NF10-INCHANGE.pdf
Description
N-Channel MOSFET
