STP30NF20 Datasheet - STMicroelectronics

STP30NF20 N-channel Power MOSFET

This Power MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gate charge. It is therefore suitable as primary switch in advanced highefficiency isolated DC-DC converters. 3 2 1 TO-247 3 1 D²PAK 3 2 1 TO-220 Fig.

STP30NF20 Features

* Type VDSS RDS(on) ID STP30NF20 200V 0.075Ω 30A STW30NF20 200V 0.075Ω 30A STB30NF20 200V 0.075Ω 30A

* Gate charge minimized

* 100% avalanche tested

* Excellent figure of merit (RDS

* Qg)

* Very good manufactuing repeability

* Very low intrinsic capacitances PTOT 125W 125

STP30NF20-STMicroelectronics.pdf

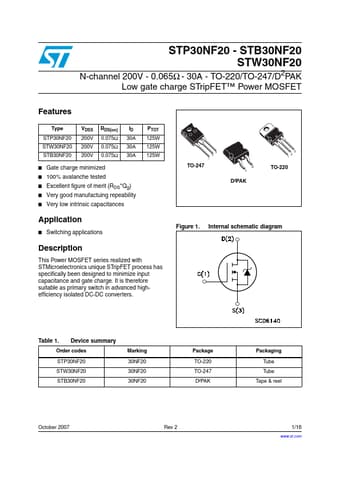

Preview of STP30NF20 PDF
STP30NF20 Datasheet Preview Page 2 STP30NF20 Datasheet Preview Page 3

Datasheet Details

Part number:

STP30NF20

Manufacturer:

STMicroelectronics ↗

File Size:

386.45 KB

Description:

N-channel power mosfet.
